Docker Stack with Traefik

I've created a simple docker stack to demonstrate Traefik

Træfik (pronounced like traffic) is a modern HTTP reverse proxy and load balancer made to deploy microservices with ease. It supports several backends (Docker, Swarm mode, Kubernetes, Marathon, Consul, Etcd, Rancher, Amazon ECS, and a lot more) to manage its configuration automatically and dynamically.

Source: https://traefik.io/

We'll use Docker Swarm as the backend in this example.

Save the compose file below as traefik-stack.yml. You can also download it from my github repo

version: "3.3"
services:
  traefik:
    image: traefik
    command: --web \
      --docker \
      --docker.swarmmode \
      --docker.domain=traefik \
      --docker.watch \
      --logLevel=DEBUG
    networks:
      - traefik-net
    ports:
      - "80:80"
      - "8080:8080"
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - /dev/null:/traefik.toml
    deploy:
      placement:
        constraints: [node.role==manager]

  portainer:
    image: portainer/portainer
    volumes:
      - "/var/run/docker.sock:/var/run/docker.sock"
      - "portainerdata:/data"
    networks:
      - traefik-net
    deploy:
      placement:
        constraints: [node.role == manager]
      labels:
        - "traefik.enable=true"
        - "traefik.port=9000"
        - "traefik.docker.network=mystack_traefik-net"
        - "traefik.frontend.rule=Host:portainer.traefik"

  ms1:
    image: melvindave/spring-boot-example
    networks:
      - traefik-net
    depends_on:
      - mongodb
    deploy:
      replicas: 1
      labels:
        - "traefik.enable=true"
        - "traefik.port=8080"
        - "traefik.docker.network=mystack_traefik-net"
        - "traefik.frontend.rule=Host:ms1.traefik"

  mongodb:
    image: mongo
    volumes:
      - "mongodata:/data/db"
    networks:
      - traefik-net
    deploy:
      replicas: 1
    ports:
      - "27017:27017"

networks:
  traefik-net:

volumes:
   mongodata:

To run this stack, you need to use Swarm Mode. Once you have a cluster, execute this command.

docker stack deploy -c traefik-stack.yml mystack

Add these domain names in your hosts file to simulate DNS resolution, change the IP 192.168.1.9 with your Swarm manager's IP address.

192.168.1.9	portainer.traefik ms1.traefik mongo.traefik

192.168.1.9 your Swarm manager's IP address

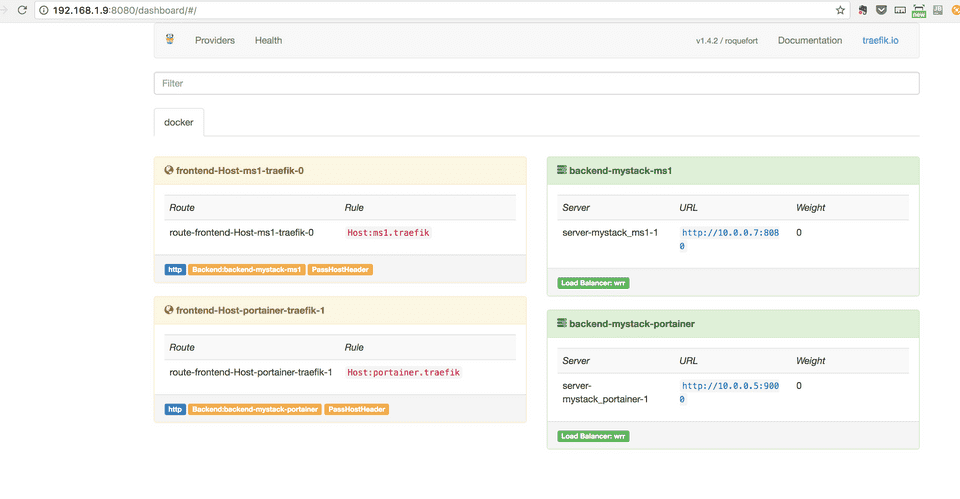

Once the stack has been deployed, you can access Traefik's web console at
http://192.168.1.9:8080

Screenshot-2017-11-07-00.01.17

All traffic to the backend services can now be routed using port 80

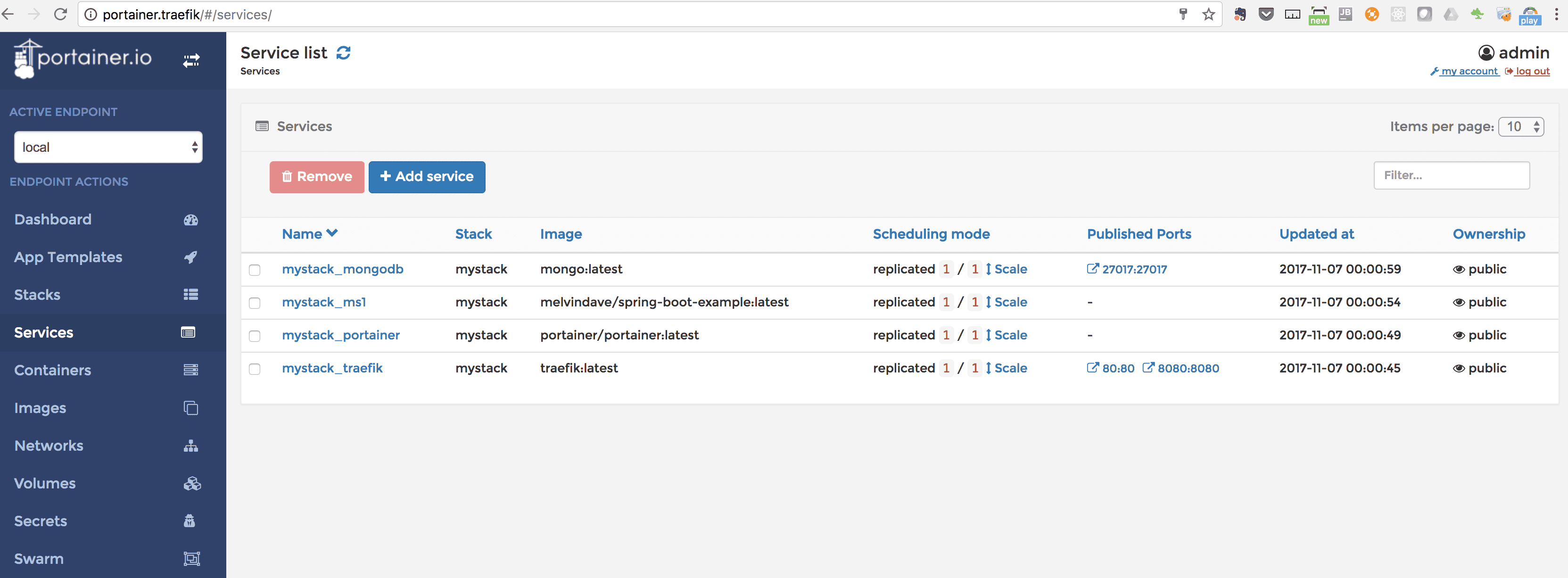

http://portainer.traefik --> portainer service running on port 8080

Screenshot-2017-11-07-00.37.04

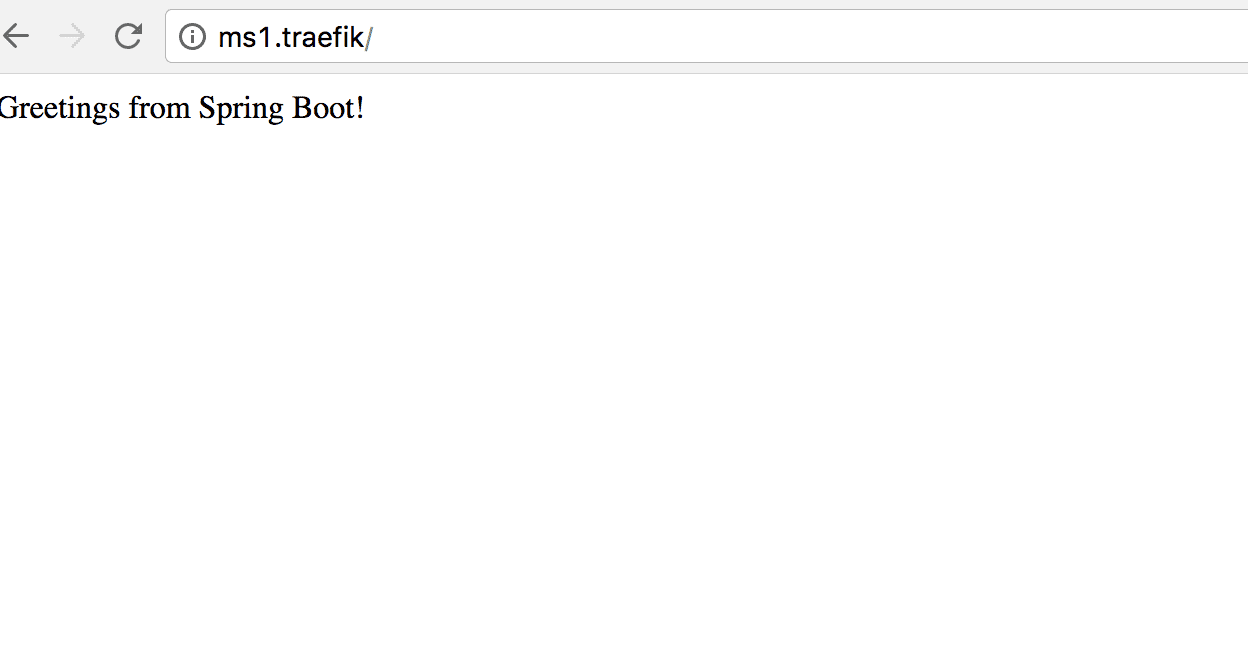

http://ms1.traefik --> ms1 service running on port 9000

Screenshot-2017-11-07-00.37.21

To cleanup, since we're using docker stack, it is just one command

docker stack rm mystack

I'm not a network expert so if you see something wrong with the demo, let me know!

References:
https://docs.traefik.io/user-guide/swarm-mode/
https://github.com/containous/traefik/issues/1388
